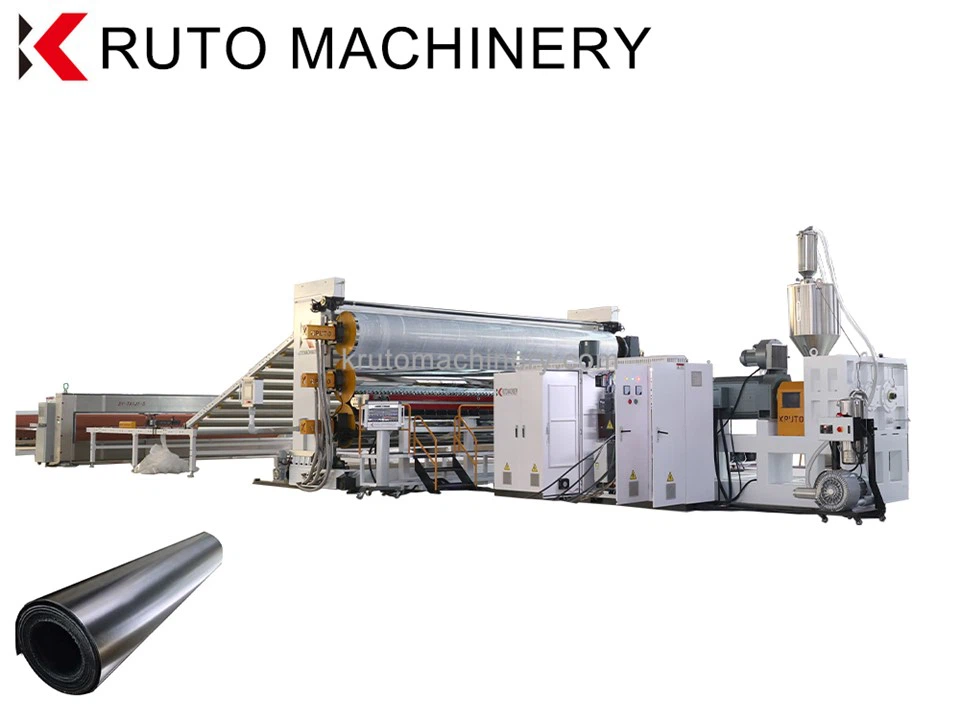

Qingdao Kruto Plastic Machinery Co., Ltd. is one of the most reliable manufacturers and suppliers of extra width 7m pe pp ldpe hdpe geomembrane production line in China. Our factory offer high quality equipment made in China with competitive price. Welcome to contact us for customized service.
Qingdao Kruto Plastic Machinery Co., Ltd. is located in the beautiful coastal city of Qingdao, only half an hour's drive from Qingdao Airport, with convenient transportation. New and regular customers are welcome to visit the company. The company has advanced processing equipment and frontline R&D personnel. The geomembrane production line produced by the company has the advantages of low energy consumption and high output. This production line can produce geomembranes with a maximum width of 8 meters and has been exported to Russia, bringing extremely high profits to customers. All production lines of our company can adjust the technical parameters of the equipment according to the specific requirements of customers. If the customer has any special customization requirements, please let us know.
Model of PE PP LDPE HDPE Geomembrane Production Line
| Model | Width of the final geomembrane (mm) |
|
KRT-GP-1000 |
1000 |
|
KRT-GP-2000 |
2000 |
|
KRT-GP-3000 |
3000 |
|
KRT-GP-4000 |
4000 |
|
KRT-GP-5000 |
5000 |
|
KRT-GP-6000 |
6000 |
|
KRT-GP-7000 |
7000 |
|
KRT-GP-8000 |
8000 |
Below please find the configuration for the Extra Width 7m PE PP LDPE HDPE Geomembrane Production Line.
Hot Tags: Extra Width 7m PE PP LDPE HDPE Geomembrane Production Line, China Extra Width 7m PE PP LDPE HDPE Geomembrane Production Line manufacturers, suppliers, Plastic artificial grass mat production line, HDPE Plastic Casing Jacket Protective Pipe Extruder, 3D HDPE Drainage Mesh Plastic Net Machine, Plastic Geomembrane Line, PE Spiral Single Wall Corrugated Pipe Extruder Machine, Pe Spiral Pipe Extruding Extruders Machinery
|
Raw Material
|
HDPE/LDPE/PP
|
|
Specification of Final Product
|
Thickness 0.8-4m
Width 7000mm
|
|
Working Condition
|
380V/3 PHASE/50Hz
|
|
Load Capacity
|
1140 kw, actual load power
50%-80%
|
|
Water Consumption
|
10 m³/h, recycling water
|
|
Air Consumption
|
0.3 m³/min
|
|
1. WBB Weighing Mixer |
1 set |
|
2. Blade type spiral feeding machine |
1 unit |
|
3. FSJ -150x33 single screw extruder |
1 unit |
|
4. Hydraulic screen exchanger |
1 set |
|
5. Melt pump |
1 set |
|
6. 7300 T Die head |
1 unit |
|
7. 7300 Three-roller calender |
1 set |
|
8. Drying mixer |
1 unit |
|
9. Cooling bracket |
1 unit |
|
10. Edge cutting device |
1 unit |
|
11. Haul off machine |
1 unit |
|
12. Horizontal cutting device |
1 unit |
|
13. Frictional winder |
1 unit |
|
14. Water roller temperature controller |
1 unit |
| can be customized according to different requirements | |
For more details, please contact us.
